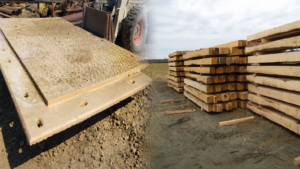

Timber Mats vs. Composite Mats: How to Choose the Right Ground Protection

Every crane pick, pipeline pull, and heavy equipment delivery begins with the same fundamental question: will the ground hold? For contractors working across soft soil, saturated terrain, or environmentally sensitive ground, the answer determines whether a project stays on schedule or stalls out entirely.

OSHA leaves relatively little room for interpretation on this point. Under 29 CFR 1926.1402, equipment cannot be assembled or operated unless ground conditions are “firm, drained, and graded” sufficiently to satisfy the manufacturer’s requirements for adequate support. The same regulation identifies the accepted solution, defining supporting materials as blocking, mats, and cribbing.

That means you need matting, and the practical question becomes which type. Most contractors are weighing hardwood timber mats against HDPE composite mats, and the two products are not interchangeable despite frequently being discussed as though they were. In this post, Viking Mat walks you through how they differ structurally, what the confirmed specifications indicate, and how to determine which option fits the demands of your job site.

What’s the Difference Between Timber and Composite Mats?

Timber mats, also referred to as crane mats, access mats, or swamp mats, are constructed from solid dimensional timbers, typically 8 or 12 inches thick, secured together with steel rods. White oak and mixed hardwood are the most common species, while Douglas fir appears in applications where reducing weight matters more than maximizing crush strength. Viking Mat supplies 8″ timber and 12″ timber mats. We also carry 3-ply laminated and CLT options, which are built from bonded layers rather than bolted timbers. That construction delivers a flatter, more stable panel.

Composite mats are molded from high-density polyethylene, commonly abbreviated as HDPE. They are hollow-cored and completely non-absorbent. Panels connect edge to edge using overlapping joints and a stainless steel pin system, producing one continuous running surface rather than a series of independent panels.

The essential distinction is straightforward. Timber concentrates its strength into thickness and mass. Composite spreads a thinner panel across a wider footprint and relies on the interlocking connection to share loads.

1. Size and Weight

The specifications below are the ones that matter most during selection.

8-inch timber mats (4 ft wide)

• 16 ft — 2,400 lbs per mat · 20 per truckload · 1,280 sq ft coverage
• 18 ft — 2,600 lbs per mat · 18 per truckload · 1,296 sq ft coverage

12-inch timber mats (4 ft wide)

• 8 ft — 2,000 lbs per mat · 24 per truckload · 768 sq ft coverage
• 12 ft — 3,000 lbs per mat · 16 per truckload · 768 sq ft coverage
• 16 ft — 4,000 lbs per mat · 12 per truckload · 768 sq ft coverage
• 20 ft — 4,800 lbs per mat · 10 per truckload · 800 sq ft coverage
• 24 ft — 6,000 lbs per mat · 8 per truckload · 768 sq ft coverage
• 28 ft — 6,800 lbs per mat · 7 per truckload · 784 sq ft coverage
• 30 ft — 7,500 lbs per mat · 6 per truckload · 720 sq ft coverage
• 32 ft — 8,000 lbs per mat · 6 per truckload · 768 sq ft coverage
• 36 ft — 9,600 lbs per mat · 5 per truckload · 720 sq ft coverage
• 40 ft — 9,800 to 10,000 lbs per mat · 4 to 5 per truckload · 720 to 800 sq ft coverage

HDPE composite mats

• 8 ft x 14 ft — approximately 4.25 in thick · approximately 1,050 lbs per panel · 112 sq ft coverage · non-absorbent · resistant to rot, chemicals, and UV

Viking does not perform repairs or replacement in the field on either material. When mats go bad on a job, we ship replacement mats to the site.

A Note on Load Ratings

Timber mats are not an engineered product. There is no industry rate sheet and no standardized load rating for them, which is why you will not find a published capacity figure from a reputable supplier. Specification works in the opposite direction. Begin with the species, dimensions, and weight of the mat, then work through the ground bearing pressure your equipment will impose and the soil conditions present on site. Where a project requires stamped calculations, those must come from a licensed engineer.

2. Which Material Handles Heavier Loads?

Timber, and the reason behind that advantage matters more than the conclusion itself.

When a crawler crane track or an outrigger float delivers a concentrated point load, the mat must bridge any soft spots beneath it without settling into them. Section depth is what provides that resistance, and a 12-inch timber mat offers nearly three times the depth of a composite panel.

Composite mats are engineered to address a fundamentally different challenge. They distribute moderate loads across a wide, continuous surface, deriving their strength from the interlocked system as a whole rather than from any single panel bridging a void. This makes them well suited to haul roads, laydown yards, and general crew access, but not suited to serving as cribbing beneath crane outriggers.

This distinction accounts for one of the most expensive mistakes in ground protection, which is treating a mat intended for distributed traffic as though it were intended for concentrated lifting loads. Under 1926.1402, the responsibility falls to the controlling entity to verify that supporting materials meet the crane manufacturer’s specification, and a composite access road does not satisfy that requirement for the pick itself. Timber mats are the appropriate product under a crane, and 12-inch is the thickness most commonly specified for that work.

3. Which Performs Better on Environmentally Sensitive Sites?

Both materials protect the ground surface by reducing bearing pressure and eliminating rutting. The meaningful differentiator between them is contamination risk.

Because composite is entirely non-absorbent, it will not transport soil, seed, or contaminants between locations. For projects operating across multiple sites under invasive species management plans or remediation protocols, that closed surface represents a genuine compliance advantage, and it washes down cleanly between deployments.

Timber’s environmental case is different and frequently stronger where it counts. Hardwood is renewable, with no end-of-life plastic disposal question. Laminated mats are also regularly specified as an alternative to topsoil stripping, allowing contractors to build temporary access without disturbing the soil profile. In saturated ground, wetlands, and swamp crossings, timber’s mass and thickness allow it to carry loads over muck where a thinner panel would submerge.

Where permit language centers on cross-contamination, composite deserves serious consideration. Where it addresses wetland crossings, soil disturbance, or material sustainability, timber is generally the stronger choice.

4. Handling and Transportation Logistics

Weight drives cost in this category, and the difference between the two materials is substantial.

A 12-inch 16-foot timber mat at 4,000 pounds translates to fewer mats per truckload and requires an excavator or loader on site for placement. A composite panel weighs approximately 1,050 pounds while covering 112 square feet, delivering more coverage per pound, more panels per load, and lighter equipment requirements for installation.

There is a comparison within the timber range worth noting as well. An 8-inch mat delivers roughly 1,280 square feet of coverage per truckload, while a 12-inch mat delivers roughly 768 square feet regardless of length, because trailer payload runs out before deck space does. On a project measured in acres of access road, that difference determines the trucking budget.

For short-duration work in remote locations where every truck movement represents a meaningful line item, composite’s transport efficiency can outweigh timber’s lower unit cost. On extended projects with a crane already mobilized to the site, that handling advantage largely disappears.

Rail access shifts the calculation again. Timber moves economically by rail in volume, which becomes significant on transmission and pipeline projects staging hundreds of mats across an extended corridor.

If you are working out delivery counts, our guide to how many mats you need breaks down coverage, weight, and truckloads by mat size.

5. Which Option Lasts Longer?

Composite holds the advantage in raw resistance, while timber holds the advantage in residual value.

HDPE does not rot or absorb moisture, and it withstands chemical exposure and UV degradation, meaning a composite mat deteriorates slowly and predictably over its service life. Timber’s primary vulnerability is standing moisture, and its longevity depends substantially on care, including storing mats off bare ground and cleaning them between deployments. Properly maintained hardwood mats are routinely recovered and reused across many years and multiple projects.

Neither material is serviced on site. Viking does not perform repairs or replacement in the field, so a mat that goes bad during a rotation is taken out of service and a replacement is shipped to the job. Build a modest allowance for that into your quantity and your schedule.

Timber additionally creates a purchasing option that composite has no equivalent to. Graded used mats deliver most of the structural performance at a lower cost, which makes them well suited to access roads and laydown areas where appearance is not a factor. That preserves new inventory for critical crane pads.

6. When to Choose Each Option

Hardwood timber mats are the right choice when:

• Cranes, piling rigs, or track machines will impose concentrated point loads
• The project involves crossing wetlands, swamp, or saturated soils
• Work is long-duration with heavy equipment already mobilized
• Permit conditions restrict topsoil stripping or soil disturbance
• You require timber crane mats and pads

Composite mats are the right choice when:

• Traffic consists of trucks, pickups, and light-to-medium equipment
• Mats will relocate between sites with contamination controls in effect
• Transportation costs are the dominant budget consideration
• You need a rapidly deployed, continuous running surface
• Mats face prolonged chemical or UV exposure

Many projects call for both. On larger jobs, contractors frequently establish composite haul roads and laydown areas for general access, then set timber crane mats at each lift location. The two materials address genuinely different requirements, and specifying a single option for both applications compromises whichever use it fits less effectively.

Frequently Asked Questions

Can composite mats be used as crane pads? We do not recommend it. Composite mats are engineered to distribute traffic loads across an interlocked surface rather than to bridge soft spots under concentrated outrigger loading. Because OSHA 1926.1402 requires supporting materials to meet the crane manufacturer’s specification, timber crane mats are the appropriate product for that application.

How thick should a timber crane mat be? Eight-inch mats are typical for access roads and lighter equipment, while 12-inch mats are most commonly specified where cranes, piling rigs, and heavy track machines are involved. Thickness should ultimately derive from the ground bearing pressure your specific equipment will impose against the subsurface conditions on your site.

How much does a timber mat weigh? An 8-inch mat 4 feet wide by 16 feet long weighs approximately 2,400 pounds, and an 18-foot version weighs approximately 2,600 pounds. A 12-inch mat 4 feet wide by 16 feet long weighs approximately 4,000 pounds, rising to between 9,800 and 10,000 pounds at 40 feet.

How much weight can a timber mat hold? Timber mats are not an engineered product, and no standardized load rating exists for them. Rather than relying on a published capacity figure, work through the ground bearing pressure your equipment will impose against the soil conditions on your site. Where a project requires stamped calculations, those must be provided by a licensed engineer.

What happens if a mat is damaged on the job? Viking does not perform repairs or replacement in the field. When a customer reports that a quantity of mats has gone bad, we ship replacement mats to the site. Allowing for that in your quantity and your schedule is worth doing at the planning stage.

Are used timber mats worth purchasing? For appropriate applications, yes. Graded used mats deliver most of the structural performance at a lower acquisition cost, which makes them a sound choice for access roads, laydown yards, and staging areas. The full grading criteria are published on our used mats page.

Should I rent or buy ground protection mats? Project duration is the deciding factor. Short-term jobs and one-off projects generally favor rental or lease. Multi-year programs and recurring work favor purchase, particularly where a buy-back program lets you recover value at project close.

Final Thoughts: Match the Mat to the Application

There is no universally superior mat, only the appropriate mat for what you are placing on it and what you are placing it over. Accounting for equipment weights, ground conditions, and permit requirements will generally make the correct specification evident.

Viking Mat has supplied the construction industry since 1910. We operate more than 80 storage facilities across the United States, with in-house rail and over-the-road logistics and rental, lease, and buy-back options on new and used inventory. Because we carry hardwood timber, laminated, CLT, graded used, and composite matting, our recommendation follows your requirements rather than our inventory.

Contact us today to discuss your equipment weights, subsurface conditions, and site access requirements, and we will help you get the right mats where you need them.
